411-HR(CA) (1117404)
| Model | GPD | Flow | (m3/d) | ft2 m2Active Area | Average Minimum Rejection | Part Number |
|---|---|---|---|---|---|---|
| 411-HR (CA) | 1,600 | 6.1 | 75 7.0 | 97.5% 96.0% | 1117404 |
Specifications are based on a 2000 mg/L NaCl solution at 420 psig operating pressure (2930kPa), 77deg.F,(25deg.C), 10% recovery, pH 6-7. Individual flux may vary +15%/ -15%. Average salt rejection after a minimum of 24 hours in continuous operation.
OPERATING AND DESIGN PARAMETERS
Membrane: Cellulose Acetate Optimum rejection pH 5.0- 6.5 Typical Operating Pressure: 140-400psig (965-2760 kPa) Operating pH range: 5.0-6.5 Maximum Pressure: 450psig (3143 kPa) Cleaning pH range: 3.0-8.0
Maximum Pressure Drop: 10 psig (69 kPa) per element Maximum Temperature: 86°F (30°C)
50 psig (345 kPa) per vessel Feed NTU: <1
Chlorine Tolerance: 1 ppm maximum, continuous 30 ppm for 30 min. during sanitization Feed SDI: <5
Typical Operating Flux: 10-20 GFD (15-35 L.H-1.M-2)

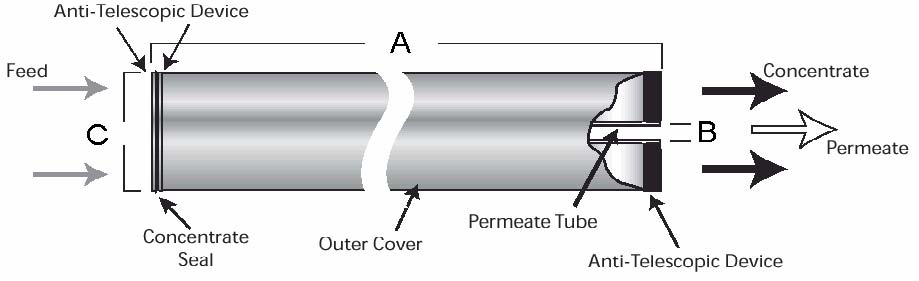

ELEMENT DIMENSIONS AND WEIGHT
| Model | A inches ( mm) | B inches (mm) | C* inches (mm) | Weight lbs (kg) |
|---|---|---|---|---|
| 411-HR (CA) | 40.125 (1019 ) | 0.775 (20 ) | 3.94 (100 ) | 11 (5) |
* The element diameter (dimension C) is designed for optimum performance in Osmonics pressure vessels. Other pressure vessel dimension and tolerance may result in excessive bypass and
Notes:
The Langelier Saturation Index (LSI) of the concentrate must be negative to minimize the posibility of calcium scale formation on the membrane surface.
At start-up the first two hours of permeate should be discarded because of element preservative.
Storage conditions should be less than: <100F, dry, in original carton and not in direct sunlight.
